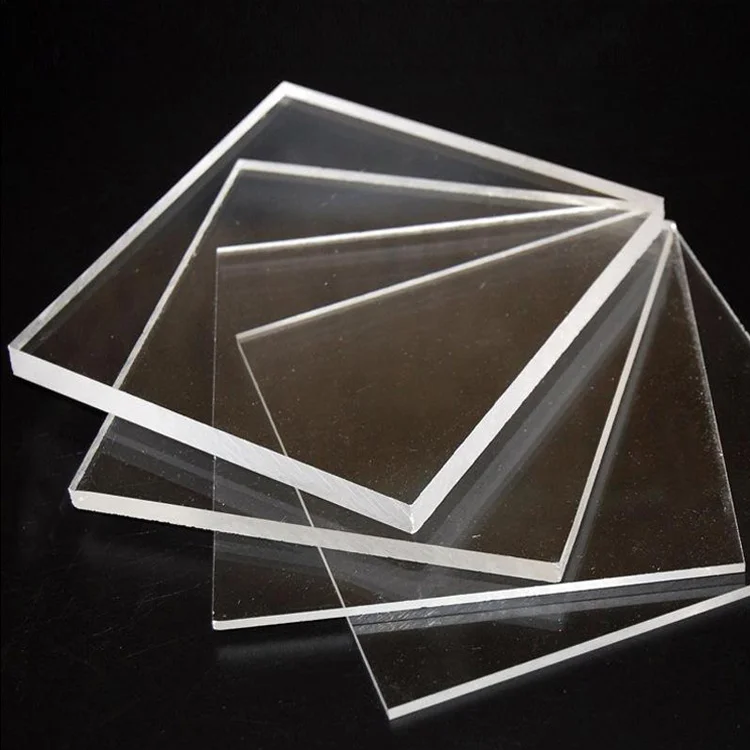

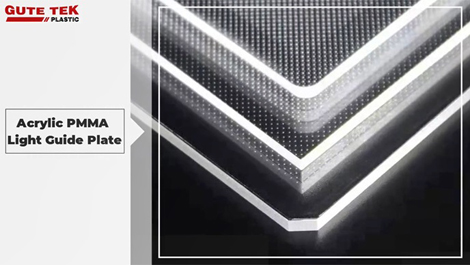

High Quality And Transmittance Mitsubishi Acrylic PMMA light guide plate

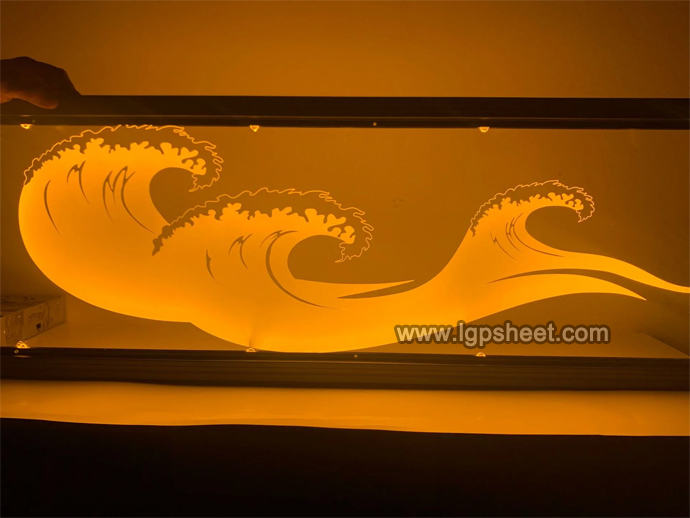

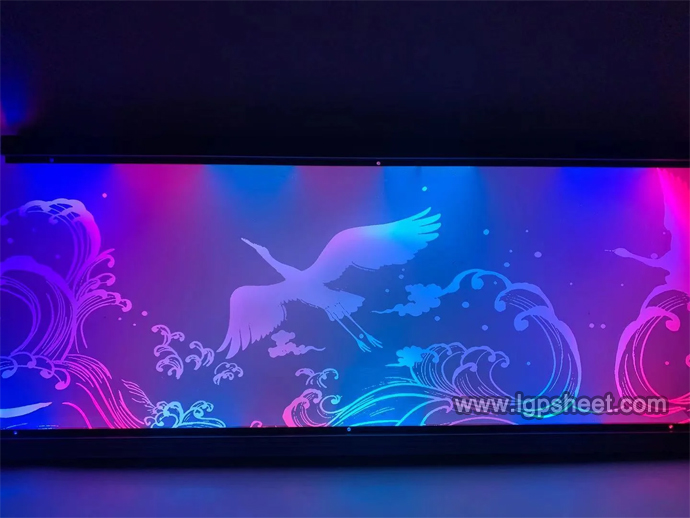

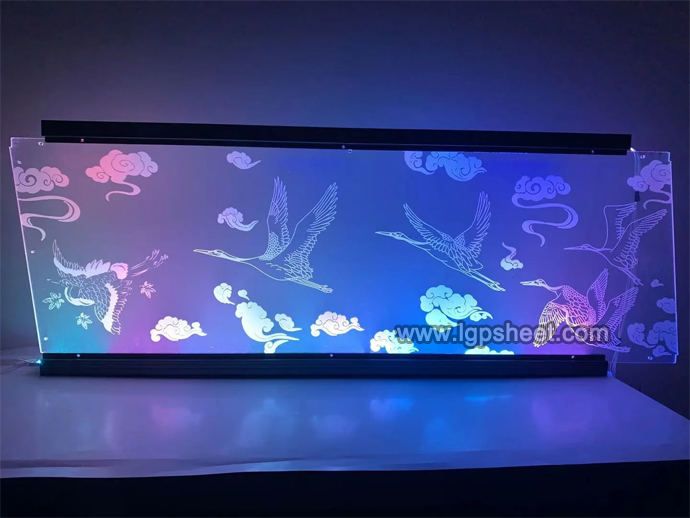

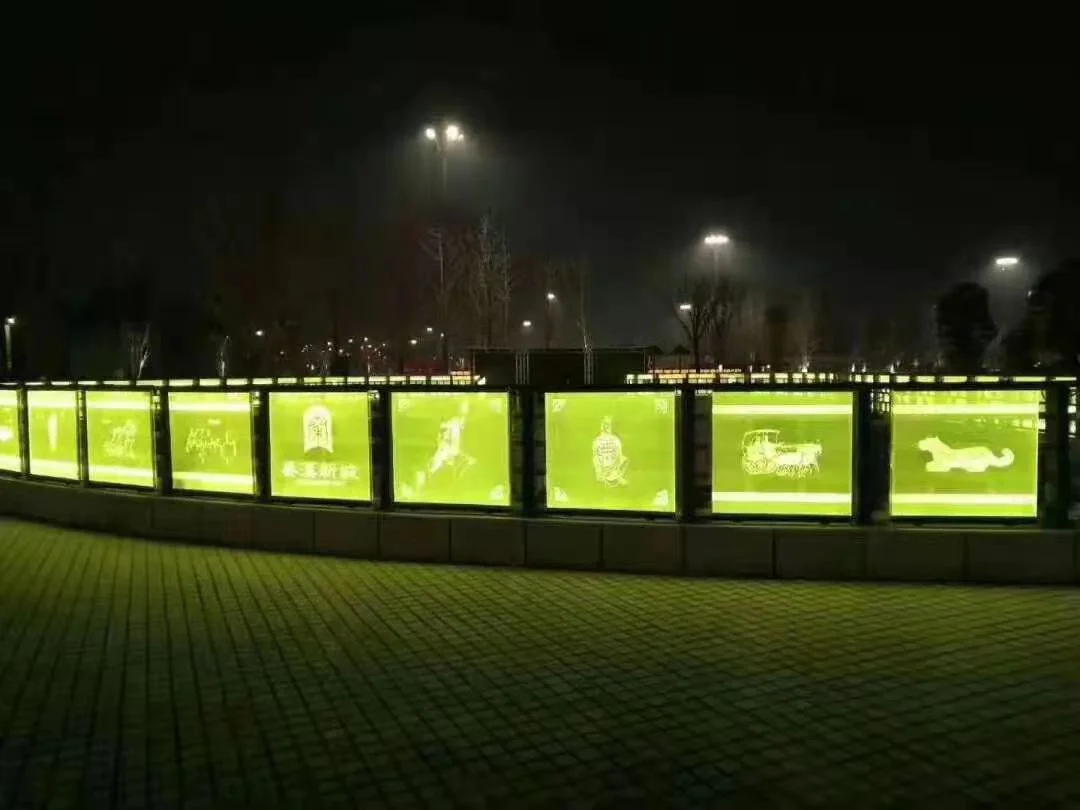

Core part of edge lighting fixture,TV,signage and display

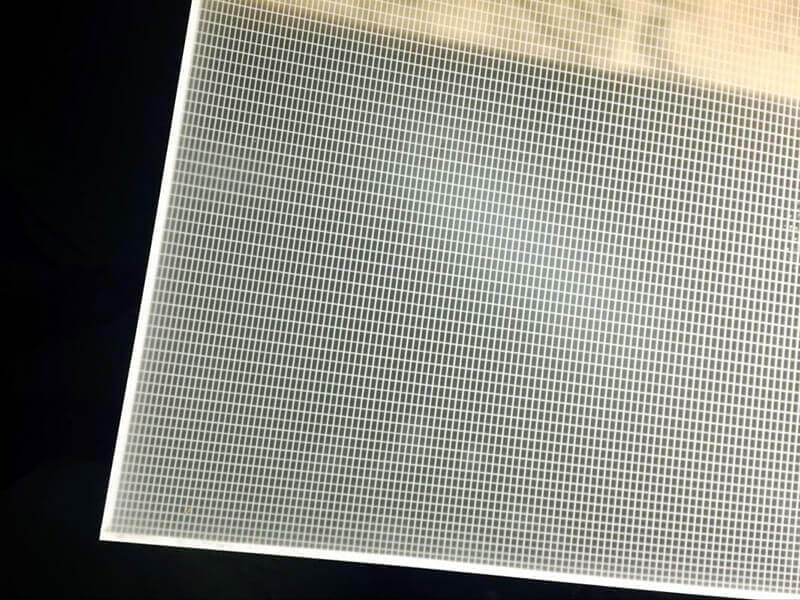

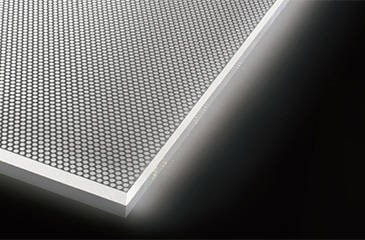

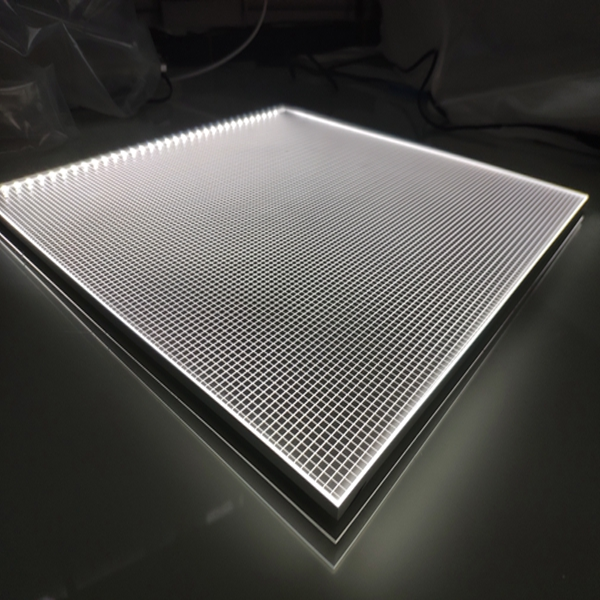

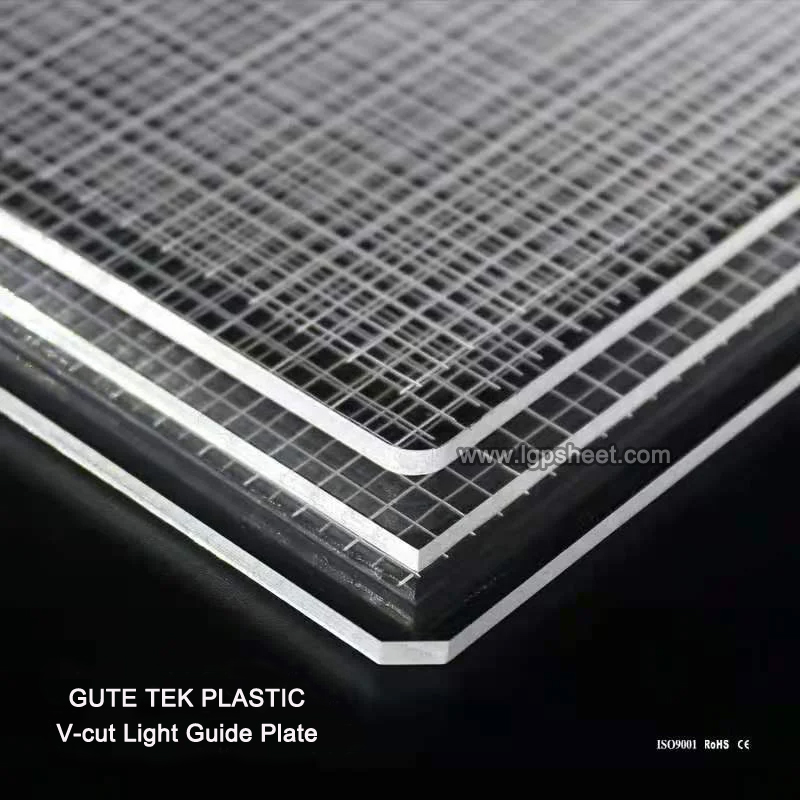

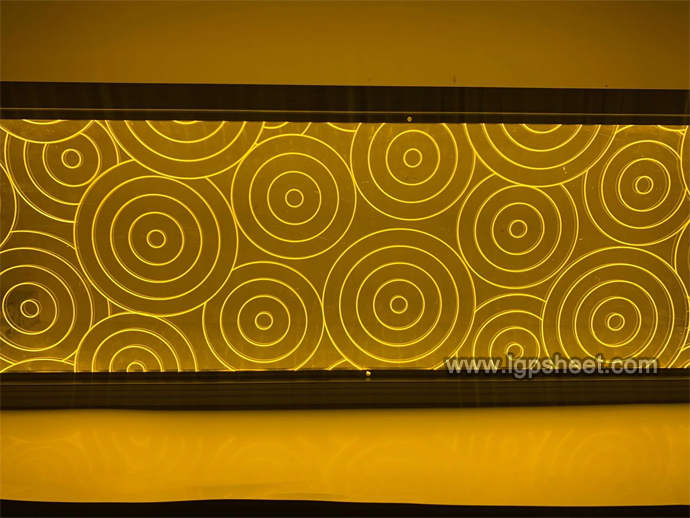

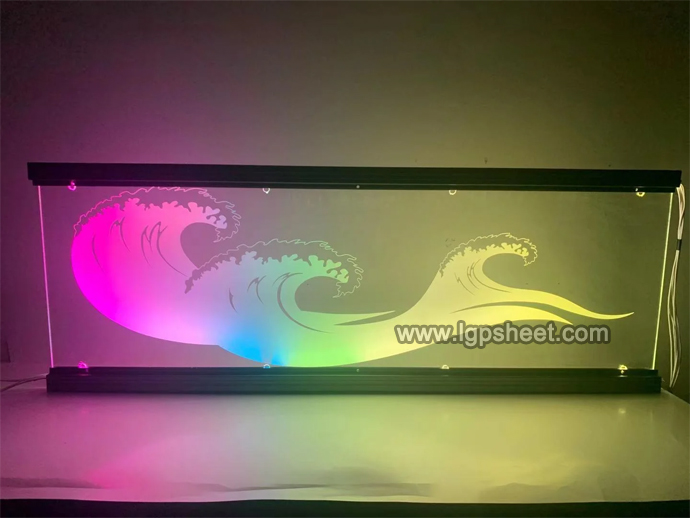

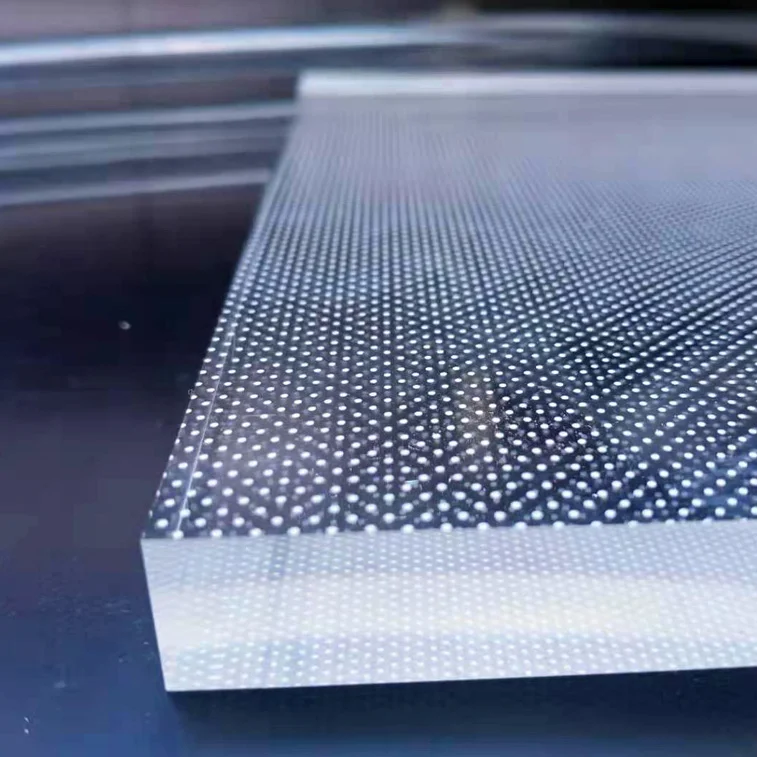

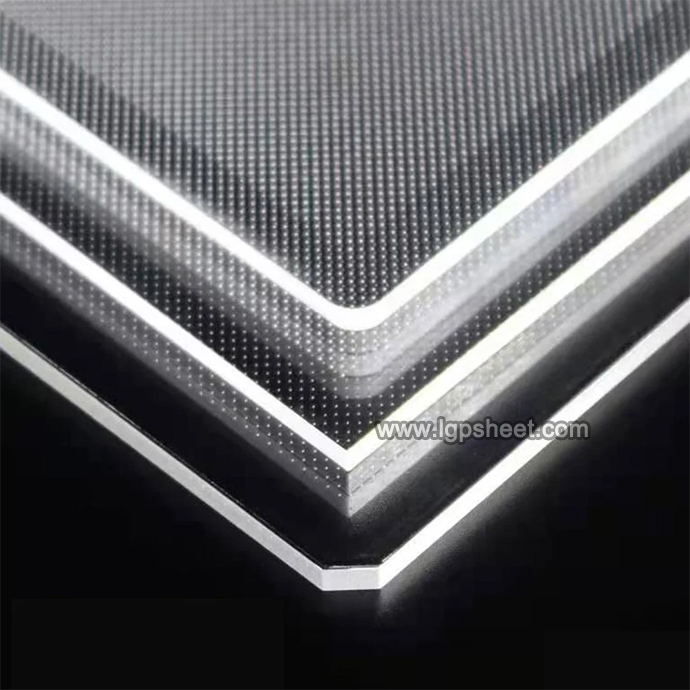

Distribution of the dotting or the pattern on the LGP, guides the light and make it even, without darkness.
Dotting distribution can be done by laser dotting, screen print and pattern printed during extrusion of the sheets.
|
PMMA LGP regular size |
||||||||
|
Mode No. |
Transmitance |
Thickness (mm) |
Applications |
Light Entrance |
||||
|
Transmitance Testing Machine |
Integrating Sphere Machine |
Single Side |
Double Sides |
4 Sides |
Long Side |
Short Side |
||
|
GT-96 (Ink Print) |
92% |
92% |
1.7 2.0 3.0 |
300*300mm |
300*300mm |
Ink Printed Necessary |
√ |
√ |
|
300*600mm |
300*600mm |
√ |
√ |
|||||
|
300*1200mm |
300*1200mm |
√ |
|
|||||
|
|
600*600mm |
√ |
√ |
|||||
|
|
600* 1200mm |
√ |
|
|||||
|
Customized Availability |
60%-92% |
60%-92% |
2.0-6.0 |
WMax: 1220mm |
/ |
/ |
/ |
|
|
PMMA Light Guide Plate Sheet |
||||
|
Item |
Content |
Unit |
Results |
Method |
|
Mechanical Property |
Tensile Strength |
kgf/cm2(MPa) |
1470 |
ASTMD-790, Spandepthratio |
|
Tensile Elongation |
kgf/cm2(MPa) |
720 |
ASTMD-638, 0.1cm/cm/min |
|
|
Elongation |
% |
20 |
ASTMD-638 |
|
|
Rockwell Hardness |
M-scale |
96 |
ASTMD-785 |
|
|
Flexural Strength |
kgf/cm2(MPa) |
35500 |
ASTMD-790 |
|
|
IZOD compacting strength |
kgf-cm/cm of Notch(J/M) |
1.5(14) |
ASTMD-256, |
|
|
Impact Value |
kg-cm(J) |
Falling dart |
||
Q: Do you just produce PMMA LGP? How about PS LGP?
A: We have over 13 extrusion line for produce sheet, besides the PMMA LGP, there is also PS LGP.
Q: Do you just offer big LGP sheet ,could you help us to cut to small size and different shape?
A: We do not only offer the big size of LGP sheets, we also have our deep processing workshop to proceed products, cut to different size and shape.
Q: How many days for samples delivery? Is samples free of charge?
A: The samples of existing specification products which has stock is 3-5 days, and the sample is free of cost; The customized samples need 7-10 days, the customized samples’ cost is negotiable.
Q: I don’t know which transmittance is suit for my product, how to choose the right one?
A: We have professional test equipments, you could send us your product and we will test our existing product, find the suitable one for you, then we will send you the diffuser for confirmation; If the existing one not match, we could customize the diffuser plate for you and send the samples to you for your confirmation.
Q: Do you use recycle Or new raw material?
A: We never use recycle materials, we only use 100% raw materials.
Q: Could you accept LC for payment?
A: We could accept LC payment, we are very familiar with LC payment process, many big buyer pay us through LC.
Q: Have your products passed through the laboratory test? Have gotten the qualified certificate or not?
A: We are an ISO9001 company, we have our own Lab for testing, besides, al ofl our products have been tested by SGS international laboratory and gotten the qualified certificate.
